ServiceMesh - Istio - Week9-3
33 minute read
Ambient Mode 실습
실습 준비
- kind로 cluster 셋팅
#
kind create cluster --name myk8s --image kindest/node:v1.32.2 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
extraPortMappings:
- containerPort: 30000 # Sample Application
hostPort: 30000
- containerPort: 30001 # Prometheus
hostPort: 30001
- containerPort: 30002 # Grafana
hostPort: 30002
- containerPort: 30003 # Kiali
hostPort: 30003
- containerPort: 30004 # Tracing
hostPort: 30004
- containerPort: 30005 # kube-ops-view
hostPort: 30005
- role: worker
- role: worker
networking:
podSubnet: 10.10.0.0/16
serviceSubnet: 10.200.1.0/24
EOF
# 설치 확인
docker ps
# 노드에 기본 툴 설치
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'apt update && apt install tree psmisc lsof ipset wget bridge-utils net-tools dnsutils tcpdump ngrep iputils-ping git vim -y'; echo; done
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'DEBIAN_FRONTEND=noninteractive apt install termshark -y'; echo; done
# (옵션) kube-ops-view
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30005 --set env.TZ="Asia/Seoul" --namespace kube-system
kubectl get deploy,pod,svc,ep -n kube-system -l app.kubernetes.io/instance=kube-ops-view
## kube-ops-view 접속 URL 확인
open "http://127.0.0.1:30005/#scale=1.5"
open "http://127.0.0.1:30005/#scale=1.3"
- kind docker network에 테스트용 PC(container) 배포
# kind 설치 시 kind 이름의 도커 브리지가 생성된다 : 172.18.0.0/16 대역
docker network ls
docker inspect kind
# 테스트용 PC(mypc) 컨테이너 기동 : kind 도커 브리지를 사용하고, 컨테이너 IP를 지정 혹은 지정 없이 배포
docker run -d --rm --name mypc --network kind --ip 172.18.0.100 nicolaka/netshoot sleep infinity # IP 지정 실행 시
# 혹은 IP 지정 실행 시 에러 발생 시 아래 처럼 IP 지정 없이 실행
docker run -d --rm --name mypc --network kind nicolaka/netshoot sleep infinity # IP 지정 없이 실행 시
docker ps
# kind network 중 컨테이너(노드) IP(대역) 확인
docker ps -q | xargs docker inspect --format '{{.Name}} {{.NetworkSettings.Networks.kind.IPAddress}}'
/myk8s-worker 172.18.0.2
/myk8s-worker2 172.18.0.4
/myk8s-control-plane 172.18.0.3
/mypc 172.18.0.100
- MetalLB 배포
# MetalLB 배포
kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/v0.14.9/config/manifests/metallb-native.yaml
# 확인
kubectl get crd
kubectl get pod -n metallb-system
# IPAddressPool, L2Advertisement 설정
cat << EOF | kubectl apply -f -
apiVersion: metallb.io/v1beta1
kind: IPAddressPool
metadata:
name: default
namespace: metallb-system
spec:
addresses:
- 172.18.255.201-172.18.255.220
---
apiVersion: metallb.io/v1beta1
kind: L2Advertisement
metadata:
name: default
namespace: metallb-system
spec:
ipAddressPools:
- default
EOF
# 확인
kubectl get IPAddressPool,L2Advertisement -A
- Istio 1.26.0 설치: Ambient profile
# myk8s-control-plane 진입 후 설치 진행
docker exec -it myk8s-control-plane bash
-----------------------------------
# istioctl 설치
export ISTIOV=1.26.0
echo 'export ISTIOV=1.26.0' >> /root/.bashrc
curl -s -L https://istio.io/downloadIstio | ISTIO_VERSION=$ISTIOV sh -
cp istio-$ISTIOV/bin/istioctl /usr/local/bin/istioctl
istioctl version --remote=false
client version: 1.26.0
# ambient 프로파일 컨트롤 플레인 배포
istioctl install --set profile=ambient --set meshConfig.accessLogFile=/dev/stdout --skip-confirmation
# Install the Kubernetes Gateway API CRDs
kubectl get crd gateways.gateway.networking.k8s.io &> /dev/null || \
kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.3.0/standard-install.yaml
# 보조 도구 설치
kubectl apply -f istio-$ISTIOV/samples/addons
kubectl apply -f istio-$ISTIOV/samples/addons # nodePort 충돌 시 한번 더 입력
# 빠져나오기
exit
-----------------------------------
# 설치 확인 : istiod, istio-ingressgateway, crd 등
kubectl get all,svc,ep,sa,cm,secret,pdb -n istio-system
kubectl get crd | grep istio.io
kubectl get crd | grep -v istio | grep -v metallb
kubectl get crd | grep gateways
gateways.gateway.networking.k8s.io 2025-06-06T13:06:36Z
gateways.networking.istio.io 2025-06-06T13:05:39Z
kubectl api-resources | grep Gateway
gatewayclasses gc gateway.networking.k8s.io/v1 false GatewayClass
gateways gtw gateway.networking.k8s.io/v1 true Gateway
gateways gw networking.istio.io/v1 true Gateway
kubectl describe cm -n istio-system istio
...
Data
====
mesh:
----
accessLogFile: /dev/stdout
defaultConfig:
discoveryAddress: istiod.istio-system.svc:15012
defaultProviders:
metrics:
- prometheus
enablePrometheusMerge: true
...
docker exec -it myk8s-control-plane istioctl proxy-status
NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION
ztunnel-df5dn.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
ztunnel-hjzcb.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
ztunnel-nn6z9.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0

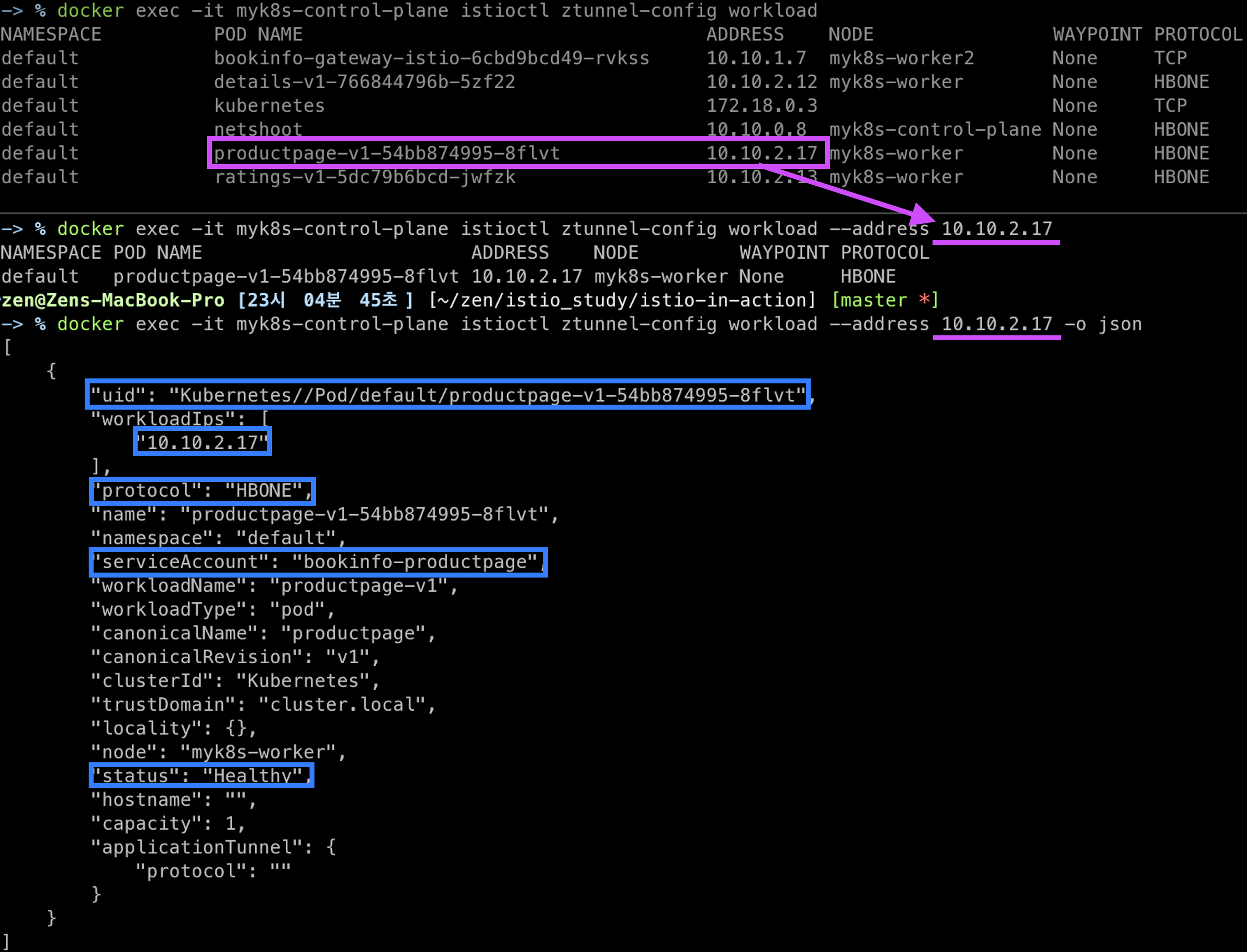

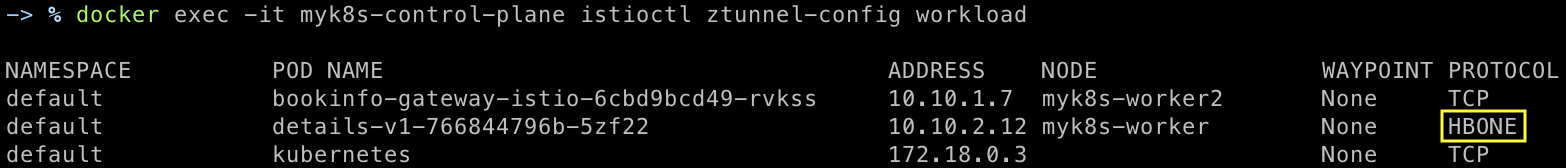

docker exec -it myk8s-control-plane istioctl ztunnel-config workload

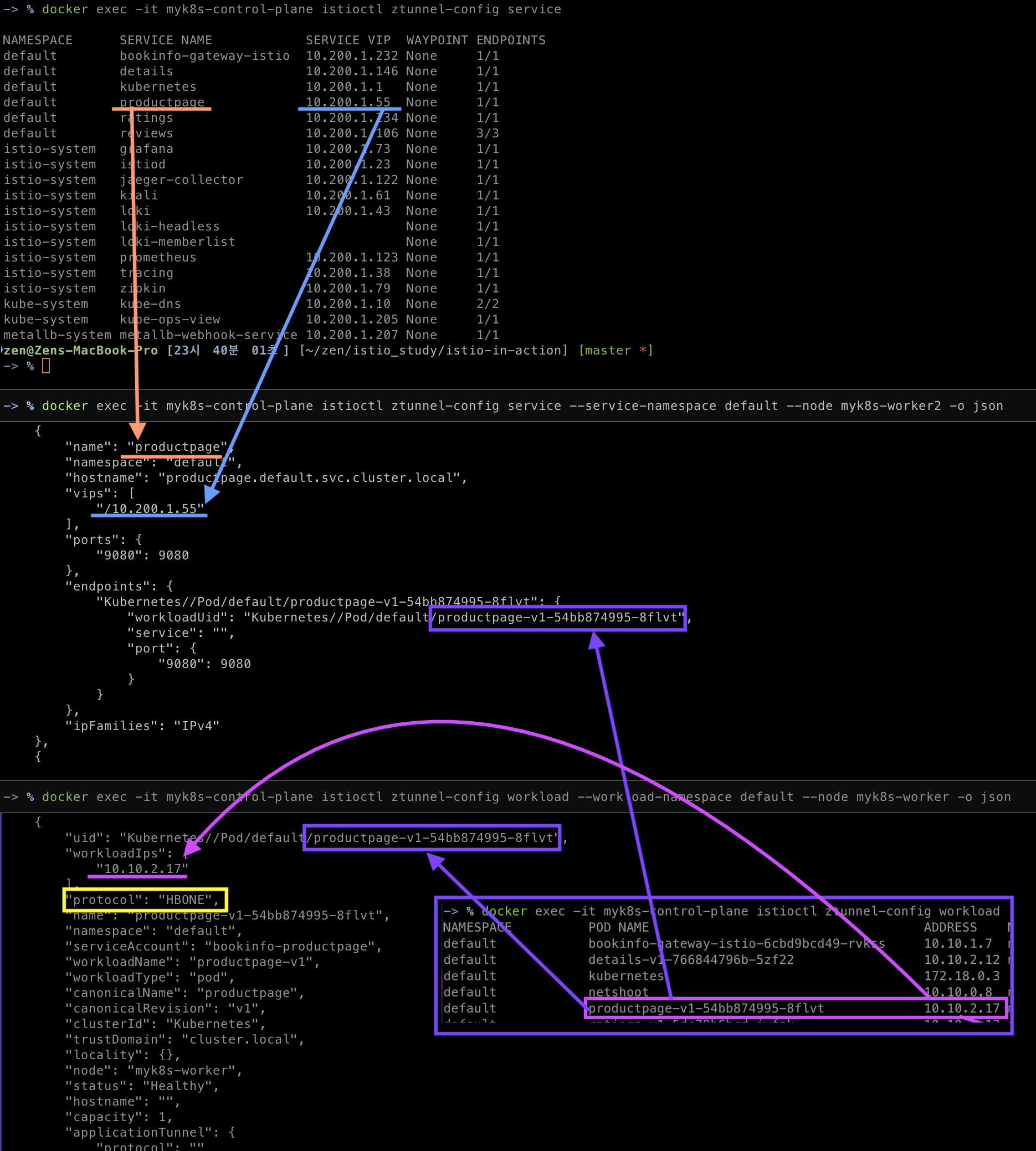

docker exec -it myk8s-control-plane istioctl ztunnel-config service
# iptables 규칙 확인
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'iptables-save'; echo; done
# NodePort 변경 및 nodeport 30001~30003으로 변경 : prometheus(30001), grafana(30002), kiali(30003), tracing(30004)
kubectl patch svc -n istio-system prometheus -p '{"spec": {"type": "NodePort", "ports": [{"port": 9090, "targetPort": 9090, "nodePort": 30001}]}}'
kubectl patch svc -n istio-system grafana -p '{"spec": {"type": "NodePort", "ports": [{"port": 3000, "targetPort": 3000, "nodePort": 30002}]}}'
kubectl patch svc -n istio-system kiali -p '{"spec": {"type": "NodePort", "ports": [{"port": 20001, "targetPort": 20001, "nodePort": 30003}]}}'
kubectl patch svc -n istio-system tracing -p '{"spec": {"type": "NodePort", "ports": [{"port": 80, "targetPort": 16686, "nodePort": 30004}]}}'

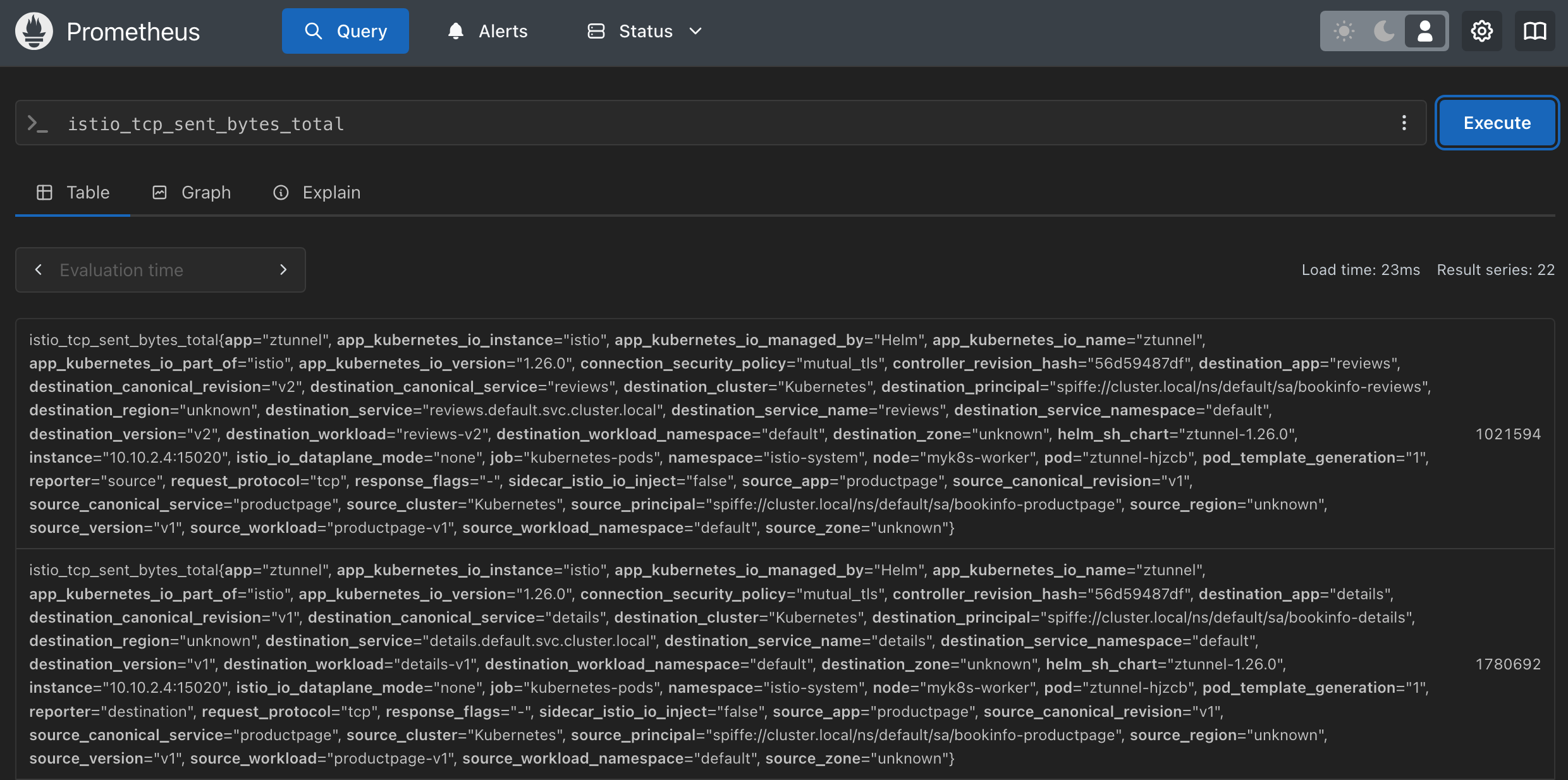

# Prometheus 접속 : envoy, istio 메트릭 확인
open http://127.0.0.1:30001
# Grafana 접속
open http://127.0.0.1:30002

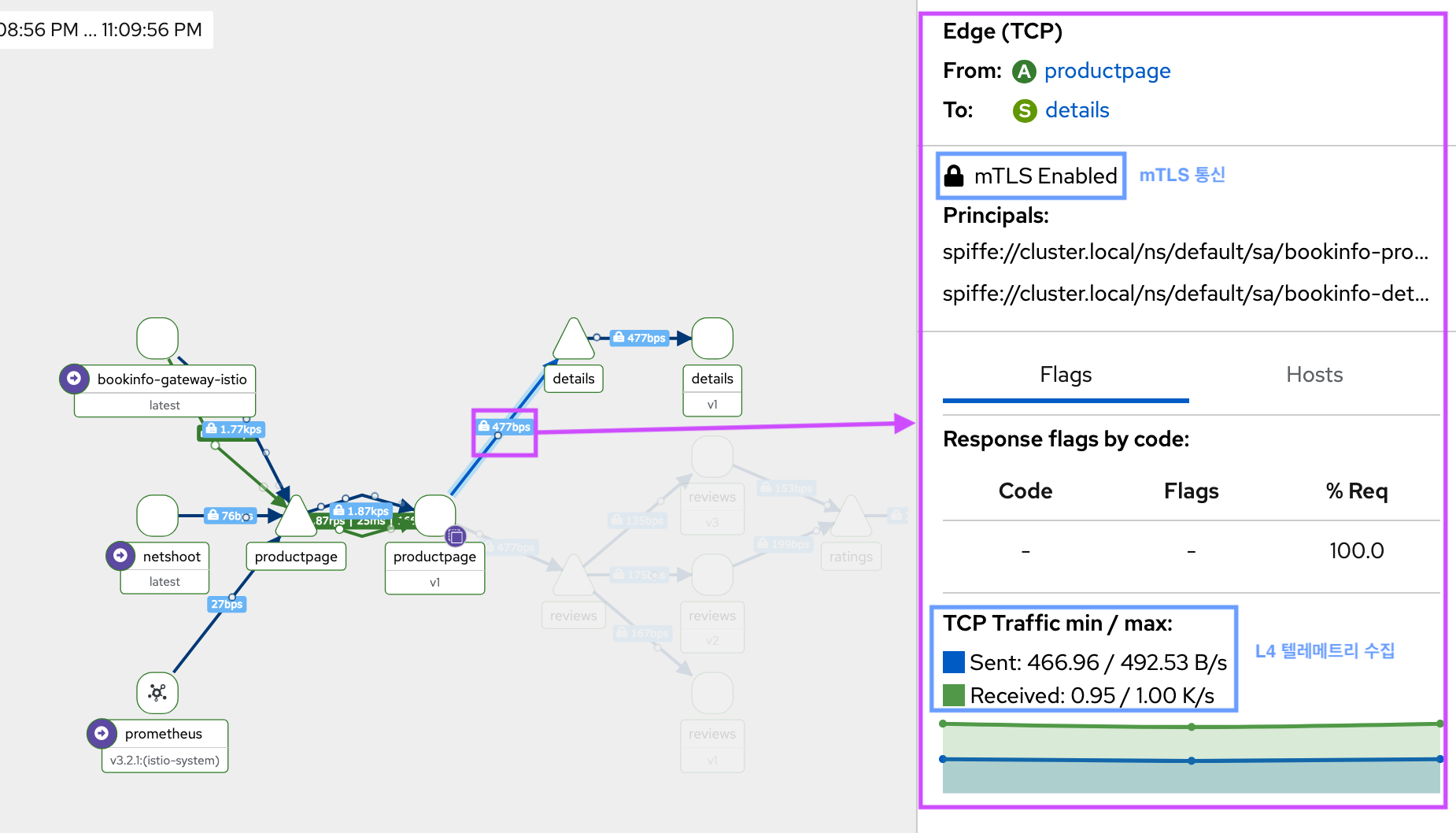

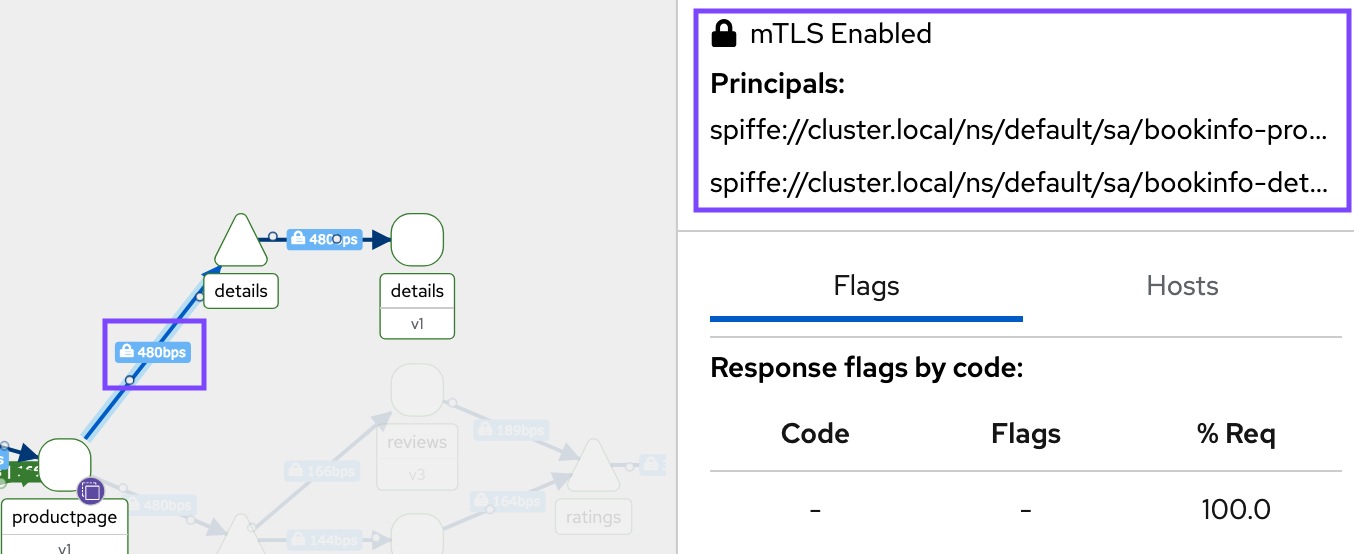

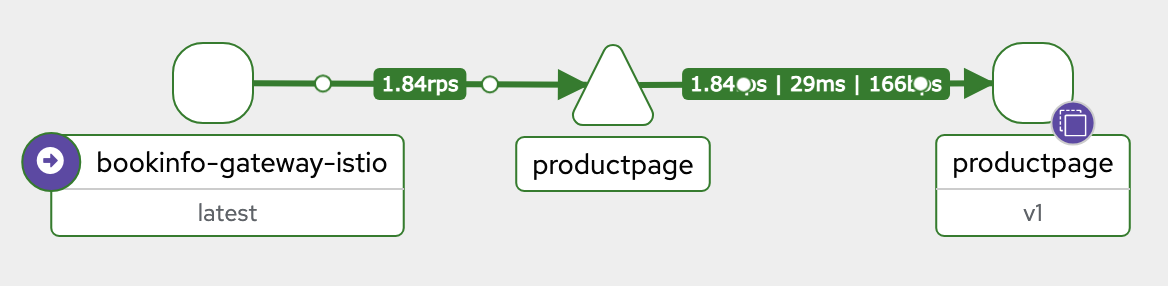

# Kiali 접속 : NodePort
open http://127.0.0.1:30003
# tracing 접속 : 예거 트레이싱 대시보드
open http://127.0.0.1:30004
- istio-cni-node 확인
#
kubectl get ds -n istio-system
NAME DESIRED CURRENT READY UP-TO-DATE AVAILABLE NODE SELECTOR AGE
istio-cni-node 3 3 3 3 3 kubernetes.io/os=linux 115s
ztunnel 3 3 3 3 3 kubernetes.io/os=linux 105s
#
kubectl get pod -n istio-system -l k8s-app=istio-cni-node -owide
kubectl describe pod -n istio-system -l k8s-app=istio-cni-node
...
Containers:
install-cni:
Container ID: containerd://b09a6898cdb1d82b4f077d24d8eca0b761caa2ac3cdc5ae0b64765da614ee984
Image: docker.io/istio/install-cni:1.26.0-distroless
Image ID: docker.io/istio/install-cni@sha256:e69cea606f6fe75907602349081f78ddb0a94417199f9022f7323510abef65cb
Port: 15014/TCP
Host Port: 0/TCP
Command:
install-cni
Args:
--log_output_level=info
State: Running
Started: Fri, 06 Jun 2025 22:05:56 +0900
Ready: True
Restart Count: 0
Requests:
cpu: 100m
memory: 100Mi
Readiness: http-get http://:8000/readyz delay=0s timeout=1s period=10s #success=1 #failure=3
Environment Variables from:
istio-cni-config ConfigMap Optional: false
Environment:
REPAIR_NODE_NAME: (v1:spec.nodeName)
REPAIR_RUN_AS_DAEMON: true
REPAIR_SIDECAR_ANNOTATION: sidecar.istio.io/status
ALLOW_SWITCH_TO_HOST_NS: true
NODE_NAME: (v1:spec.nodeName)
GOMEMLIMIT: node allocatable (limits.memory)
GOMAXPROCS: node allocatable (limits.cpu)
POD_NAME: istio-cni-node-xj4x2 (v1:metadata.name)
POD_NAMESPACE: istio-system (v1:metadata.namespace)
Mounts:
/host/etc/cni/net.d from cni-net-dir (rw)
/host/opt/cni/bin from cni-bin-dir (rw)
/host/proc from cni-host-procfs (ro)
/host/var/run/netns from cni-netns-dir (rw)
/var/run/istio-cni from cni-socket-dir (rw)
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-srxzl (ro)
/var/run/ztunnel from cni-ztunnel-sock-dir (rw)
...
Volumes:
cni-bin-dir:
Type: HostPath (bare host directory volume)
Path: /opt/cni/bin
HostPathType:
cni-host-procfs:
Type: HostPath (bare host directory volume)
Path: /proc
HostPathType: Directory
cni-ztunnel-sock-dir:
Type: HostPath (bare host directory volume)
Path: /var/run/ztunnel
HostPathType: DirectoryOrCreate
cni-net-dir:
Type: HostPath (bare host directory volume)
Path: /etc/cni/net.d
HostPathType:
cni-socket-dir:
Type: HostPath (bare host directory volume)
Path: /var/run/istio-cni
HostPathType:
cni-netns-dir:
Type: HostPath (bare host directory volume)
Path: /var/run/netns
HostPathType: DirectoryOrCreate
...
# 노드에서 기본 정보 확인
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /opt/cni/bin'; echo; done
-rwxr-xr-x 1 root root 52428984 Jun 1 05:42 istio-cni
...
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /etc/cni/net.d'; echo; done
-rw-r--r-- 1 root root 862 Jun 1 04:54 10-kindnet.conflist
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/istio-cni'; echo; done
-rw------- 1 root root 2990 Jun 1 05:42 istio-cni-kubeconfig
-rw------- 1 root root 171 Jun 1 04:54 istio-cni.log
srw-rw-rw- 1 root root 0 Jun 1 04:54 log.sock
srw-rw-rw- 1 root root 0 Jun 1 04:54 pluginevent.sock

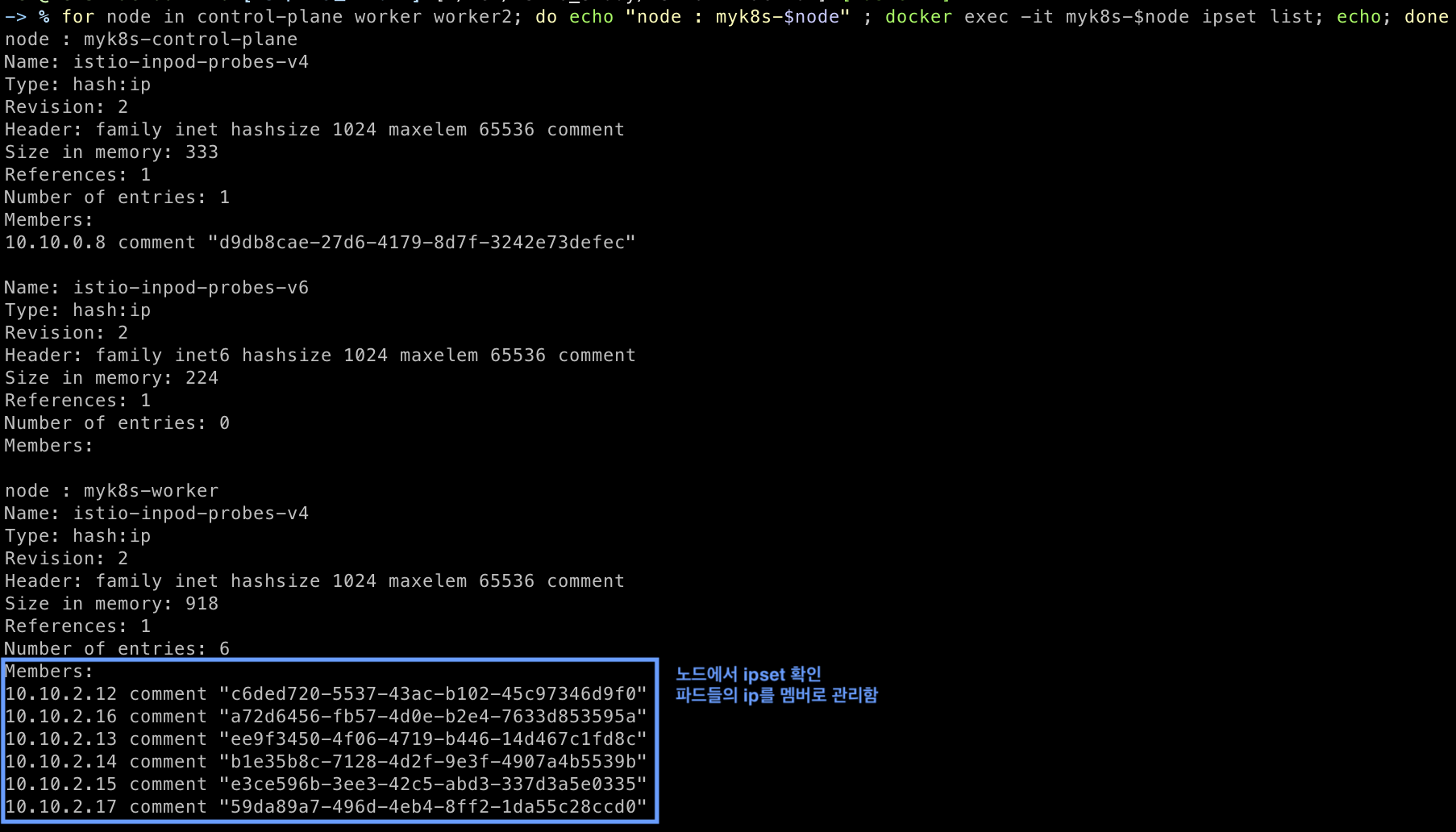

for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/netns'; echo; done
...
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'lsns -t net'; echo; done
# istio-cni-node 데몬셋 파드 로그 확인
kubectl logs -n istio-system -l k8s-app=istio-cni-node -f
...
- ztunnel 데몬셋 파드 정보 확인
# ztunnel 파드 확인 : 파드 이름 변수 지정
kubectl get pod -n istio-system -l app=ztunnel -owide
kubectl get pod -n istio-system -l app=ztunnel
ZPOD1NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[0].metadata.name}")
ZPOD2NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[1].metadata.name}")
ZPOD3NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[2].metadata.name}")
echo $ZPOD1NAME $ZPOD2NAME $ZPOD3NAME
#
kubectl describe pod -n istio-system -l app=ztunnel
...
Containers:
istio-proxy:
Container ID: containerd://d81ca867bfd0c505f062ea181a070a8ab313df3591e599a22706a7f4f537ffc5
Image: docker.io/istio/ztunnel:1.26.0-distroless
Image ID: docker.io/istio/ztunnel@sha256:d711b5891822f4061c0849b886b4786f96b1728055333cbe42a99d0aeff36dbe
Port: 15020/TCP
...
Requests:
cpu: 200m
memory: 512Mi
Readiness: http-get http://:15021/healthz/ready delay=0s timeout=1s period=10s #success=1 #failure=3
Environment:
CA_ADDRESS: istiod.istio-system.svc:15012
XDS_ADDRESS: istiod.istio-system.svc:15012
RUST_LOG: info
RUST_BACKTRACE: 1
ISTIO_META_CLUSTER_ID: Kubernetes
INPOD_ENABLED: true
TERMINATION_GRACE_PERIOD_SECONDS: 30
POD_NAME: ztunnel-9rzzt (v1:metadata.name)
POD_NAMESPACE: istio-system (v1:metadata.namespace)
NODE_NAME: (v1:spec.nodeName)
INSTANCE_IP: (v1:status.podIP)
SERVICE_ACCOUNT: (v1:spec.serviceAccountName)
ISTIO_META_ENABLE_HBONE: true
Mounts:
/tmp from tmp (rw)
/var/run/secrets/istio from istiod-ca-cert (rw)
/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-42r88 (ro)
/var/run/secrets/tokens from istio-token (rw)
/var/run/ztunnel from cni-ztunnel-sock-dir (rw)
...
Volumes:
istio-token:
Type: Projected (a volume that contains injected data from multiple sources)
TokenExpirationSeconds: 43200
istiod-ca-cert:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: istio-ca-root-cert
Optional: false
cni-ztunnel-sock-dir:
Type: HostPath (bare host directory volume)
Path: /var/run/ztunnel
HostPathType: DirectoryOrCreate
...
#
kubectl krew install pexec
kubectl pexec $ZPOD1NAME -it -T -n istio-system -- bash
-------------------------------------------------------
whoami
ip -c addr
ifconfig
iptables -t mangle -S
iptables -t nat -S
ss -tnlp
ss -tnp
ss -xnp
Netid State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
u_seq ESTAB 0 0 /var/run/ztunnel/ztunnel.sock 384472 * 382521
u_seq ESTAB 0 0 * 382521 * 384472 users:(("ztunnel",pid=1,fd=19))
u_str ESTAB 0 0 * 385352 * 385353 users:(("ztunnel",pid=1,fd=13),("ztunnel",pid=1,fd=8),("ztunnel",pid=1,fd=6))
u_str ESTAB 0 0 * 385353 * 385352 users:(("ztunnel",pid=1,fd=7))
ls -l /var/run/ztunnel
total 0
srwxr-xr-x 1 root root 0 Jun 1 04:54 ztunnel.sock
# 메트릭 정보 확인
curl -s http://localhost:15020/metrics
# Viewing Istiod state for ztunnel xDS resources
curl -s http://localhost:15000/config_dump
exit
-------------------------------------------------------
# 아래 ztunnel 파드도 확인해보자
kubectl pexec $ZPOD2NAME -it -T -n istio-system -- bash
kubectl pexec $ZPOD3NAME -it -T -n istio-system -- bash
# 노드에서 기본 정보 확인
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node sh -c 'ls -l /var/run/ztunnel'; echo; done
# ztunnel 데몬셋 파드 로그 확인

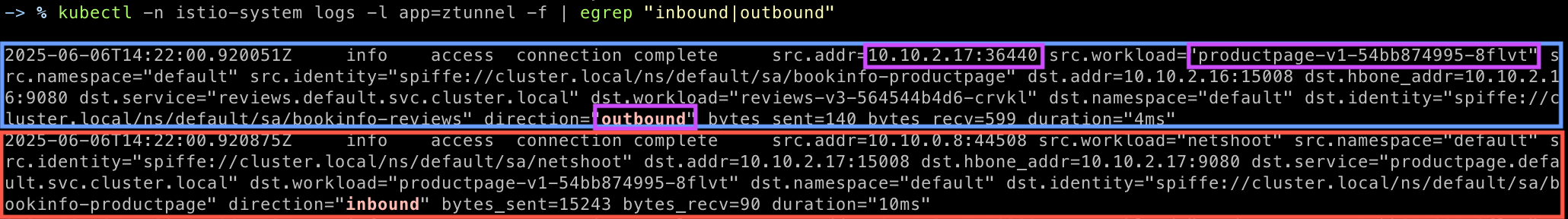

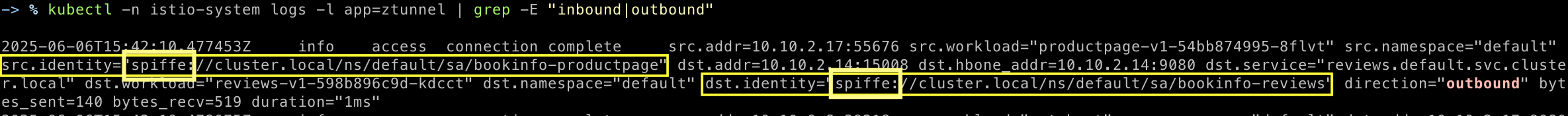

kubectl logs -n istio-system -l app=ztunnel -f
...
Deploy the sample application
#
docker exec -it myk8s-control-plane ls -l istio-1.26.0
total 40
-rw-r--r-- 1 root root 11357 May 7 11:05 LICENSE
-rw-r--r-- 1 root root 6927 May 7 11:05 README.md
drwxr-x--- 2 root root 4096 May 7 11:05 bin
-rw-r----- 1 root root 983 May 7 11:05 manifest.yaml
drwxr-xr-x 4 root root 4096 May 7 11:05 manifests
drwxr-xr-x 27 root root 4096 May 7 11:05 samples
drwxr-xr-x 3 root root 4096 May 7 11:05 tools
# Deploy the Bookinfo sample application:
docker exec -it myk8s-control-plane kubectl apply -f istio-1.26.0/samples/bookinfo/platform/kube/bookinfo.yaml
# 확인
kubectl get deploy,pod,svc,ep
docker exec -it myk8s-control-plane istioctl ztunnel-config service
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
docker exec -it myk8s-control-plane istioctl proxy-status
# 통신 확인 : ratings 에서 productpage 페이지
kubectl exec "$(kubectl get pod -l app=ratings -o jsonpath='{.items[0].metadata.name}')" -c ratings -- curl -sS productpage:9080/productpage | grep -o "<title>.*</title>"
# 요청 테스트용 파드 생성 : netshoot
kubectl create sa netshoot
cat << EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: netshoot
spec:
serviceAccountName: netshoot
nodeName: myk8s-control-plane
containers:
- name: netshoot
image: nicolaka/netshoot
command: ["tail"]
args: ["-f", "/dev/null"]
terminationGracePeriodSeconds: 0
EOF
# 요청 확인
kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title
# 반복 요청
while true; do kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
Open the application to outside traffic
#
docker exec -it myk8s-control-plane cat istio-1.26.0/samples/bookinfo/gateway-api/bookinfo-gateway.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: bookinfo-gateway
spec:
gatewayClassName: istio
listeners:
- name: http
port: 80
protocol: HTTP
allowedRoutes:
namespaces:
from: Same
---
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
name: bookinfo
spec:
parentRefs:
- name: bookinfo-gateway
rules:
- matches:
- path:
type: Exact
value: /productpage
- path:
type: PathPrefix
value: /static
- path:
type: Exact
value: /login
- path:
type: Exact
value: /logout
- path:
type: PathPrefix
value: /api/v1/products
backendRefs:
- name: productpage
port: 9080
docker exec -it myk8s-control-plane kubectl apply -f istio-1.26.0/samples/bookinfo/gateway-api/bookinfo-gateway.yaml
# 확인
kubectl get gateway
NAME CLASS ADDRESS PROGRAMMED AGE
bookinfo-gateway istio 172.18.255.201 True 14s
kubectl get HTTPRoute
NAME HOSTNAMES AGE
bookinfo 24s
kubectl get svc,ep bookinfo-gateway-istio
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/bookinfo-gateway-istio LoadBalancer 10.200.1.232 172.18.255.201 15021:31254/TCP,80:31414/TCP 42s
NAME ENDPOINTS AGE
endpoints/bookinfo-gateway-istio 10.10.1.7:15021,10.10.1.7:80 42s
kubectl get pod -l gateway.istio.io/managed=istio.io-gateway-controller -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
bookinfo-gateway-istio-6cbd9bcd49-rvkss 1/1 Running 0 59s 10.10.1.7 myk8s-worker2 <none> <none>
# 접속 확인
docker ps
kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}'
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
docker exec -it mypc curl $GWLB/productpage -v
docker exec -it mypc curl $GWLB/productpage -I
# 반복 요청 : 아래 mypc 컨테이너에서 반복 요청 계속 해두기!
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done

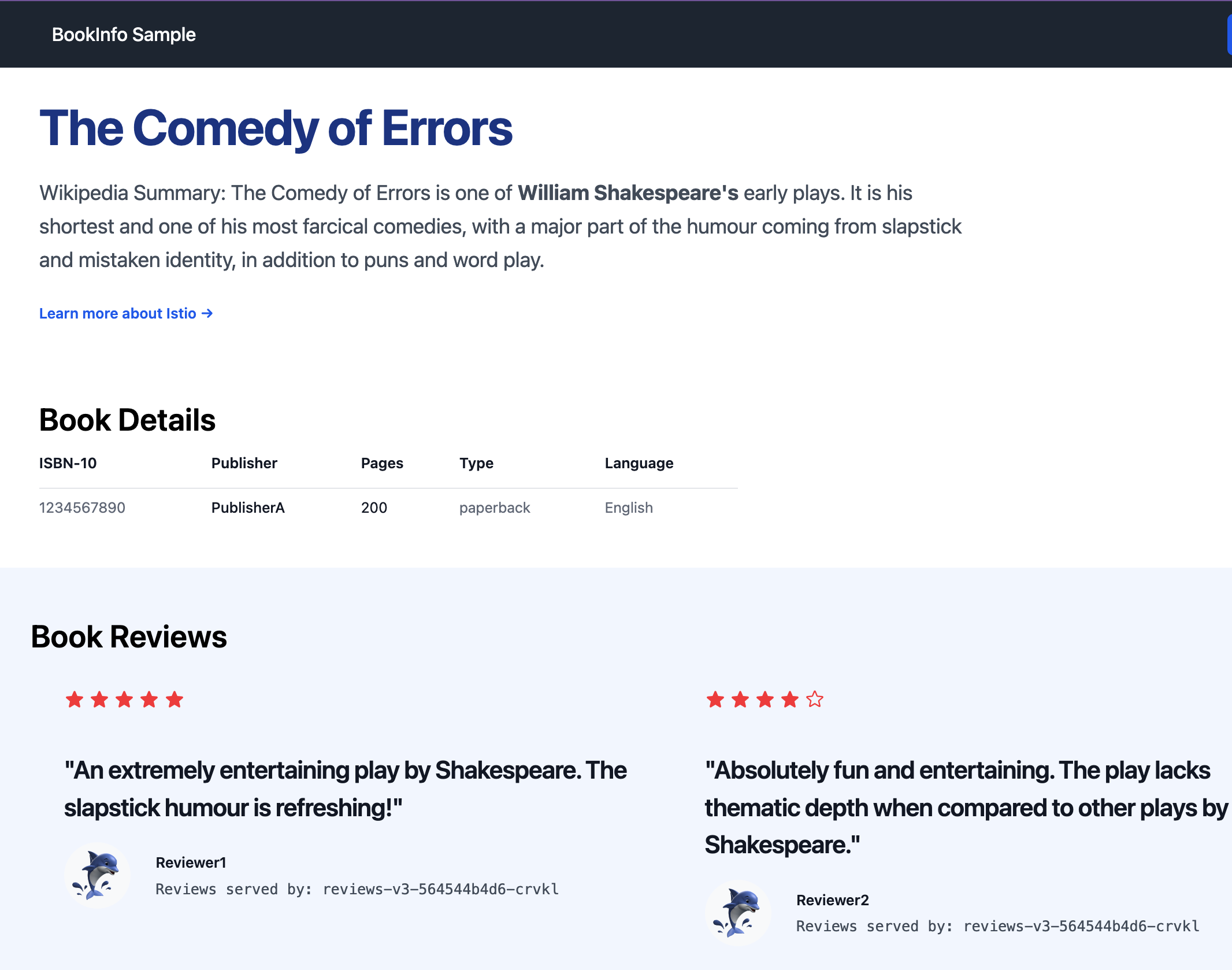

# 자신의 로컬 PC에서 접속 시도
kubectl patch svc bookinfo-gateway-istio -p '{"spec": {"type": "LoadBalancer", "ports": [{"port": 80, "targetPort": 80, "nodePort": 30000}]}}'
kubectl get svc bookinfo-gateway-istio
open "http://127.0.0.1:30000/productpage"
# 반복 요청
while true; do curl -s http://127.0.0.1:30000/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
Adding your application to ambient
- NS or Pod label:
istio.io/dataplane-mode=ambient - pod does not have pot-out label:
istio.io/dataplane-mode=none
# 디폴트 네임스페이서 모든 파드들에 ambient mesh 통신 적용 설정
# You can enable all pods in a given namespace to be part of the ambient mesh by simply labeling the namespace:
kubectl label namespace default istio.io/dataplane-mode=ambient
# 파드 정보 확인 : 사이트카가 없다! , 파드 수명 주기에 영향도 없다! -> mTLS 암호 통신 제공, L4 텔레메트리(메트릭) 제공
docker exec -it myk8s-control-plane istioctl proxy-status
kubectl get pod
#
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
NAMESPACE POD NAME ADDRESS NODE WAYPOINT PROTOCOL
...
default productpage-v1-54bb874995-8flvt 10.10.2.17 myk8s-worker None HBONE
...
docker exec -it myk8s-control-plane istioctl ztunnel-config workload --address 10.10.2.17
docker exec -it myk8s-control-plane istioctl ztunnel-config workload --address 10.10.2.17 -o json
#
PPOD=$(kubectl get pod -l app=productpage -o jsonpath='{.items[0].metadata.name}')
kubectl pexec $PPOD -it -T -- bash
-------------------------------------------------------
iptables-save
iptables -t mangle -S
iptables -t nat -S
ss -tnlp
ss -tnp
ss -xnp
ls -l /var/run/ztunnel
exit
-------------------------------------------------------
# 노드에서 ipset 확인 : 파드들의 ip를 멤버로 관리 확인
for node in control-plane worker worker2; do echo "node : myk8s-$node" ; docker exec -it myk8s-$node ipset list; echo; done
# istio-cni-node 로그 확인
kubectl -n istio-system logs -l k8s-app=istio-cni-node -f
...
# ztunnel 파드 로그 모니터링 : IN/OUT 트래픽 정보
kubectl -n istio-system logs -l app=ztunnel -f | egrep "inbound|outbound"
# ztunnel 파드 확인 : 파드 이름 변수 지정
kubectl get pod -n istio-system -l app=ztunnel -owide
kubectl get pod -n istio-system -l app=ztunnel
ZPOD1NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[0].metadata.name}")
ZPOD2NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[1].metadata.name}")
ZPOD3NAME=$(kubectl get pod -n istio-system -l app=ztunnel -o jsonpath="{.items[2].metadata.name}")
echo $ZPOD1NAME $ZPOD2NAME $ZPOD3NAME
#
kubectl pexec $ZPOD1NAME -it -T -n istio-system -- bash
-------------------------------------------------------
iptables -t mangle -S
iptables -t nat -S
ss -tnlp
ss -tnp
ss -xnp
ls -l /var/run/ztunnel
# 메트릭 정보 확인
curl -s http://localhost:15020/metrics | grep '^[^#]'
...
# Viewing Istiod state for ztunnel xDS resources
curl -s http://localhost:15000/config_dump
exit
-------------------------------------------------------
# netshoot 파드만 ambient mode 에서 제외해보자
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
kubectl label pod netshoot istio.io/dataplane-mode=none
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
NAMESPACE POD NAME ADDRESS NODE WAYPOINT PROTOCOL
default netshoot 10.10.0.7 myk8s-control-plane None TCP
상세 정보 분석
istio-proxy 정보 확인
#
docker exec -it myk8s-control-plane istioctl proxy-status
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/bookinfo-gateway-istio
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/bookinfo-gateway-istio --waypoint
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/bookinfo-gateway-istio --port 80
docker exec -it myk8s-control-plane istioctl proxy-config listener deploy/bookinfo-gateway-istio --port 80 -o json
docker exec -it myk8s-control-plane istioctl proxy-config route deploy/bookinfo-gateway-istio
docker exec -it myk8s-control-plane istioctl proxy-config route deploy/bookinfo-gateway-istio --name http.80
docker exec -it myk8s-control-plane istioctl proxy-config route deploy/bookinfo-gateway-istio --name http.80 -o json
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/bookinfo-gateway-istio
docker exec -it myk8s-control-plane istioctl proxy-config cluster deploy/bookinfo-gateway-istio --fqdn productpage.default.svc.cluster.local -o json
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/bookinfo-gateway-istio --status healthy
docker exec -it myk8s-control-plane istioctl proxy-config endpoint deploy/bookinfo-gateway-istio --cluster 'outbound|9080||productpage.default.svc.cluster.local' -o json
docker exec -it myk8s-control-plane istioctl proxy-config secret deploy/bookinfo-gateway-istio
docker exec -it myk8s-control-plane istioctl proxy-config secret deploy/bookinfo-gateway-istio -o json
docker exec -it myk8s-control-plane istioctl proxy-config bootstrap deploy/bookinfo-gateway-istio
ztunnel-config
# A group of commands used to update or retrieve Ztunnel configuration from a Ztunnel instance.
docker exec -it myk8s-control-plane istioctl ztunnel-config
docker exec -it myk8s-control-plane istioctl ztunnel-config service
docker exec -it myk8s-control-plane istioctl ztunnel-config service --service-namespace default --node myk8s-worker
docker exec -it myk8s-control-plane istioctl ztunnel-config service --service-namespace default --node myk8s-worker2
docker exec -it myk8s-control-plane istioctl ztunnel-config service --service-namespace default --node myk8s-worker2 -o json
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
docker exec -it myk8s-control-plane istioctl ztunnel-config workload --workload-namespace default
docker exec -it myk8s-control-plane istioctl ztunnel-config workload --workload-namespace default --node myk8s-worker2
docker exec -it myk8s-control-plane istioctl ztunnel-config workload --workload-namespace default --node myk8s-worker -o json
docker exec -it myk8s-control-plane istioctl ztunnel-config certificate --node myk8s-worker
docker exec -it myk8s-control-plane istioctl ztunnel-config certificate --node myk8s-worker -o json
...
docker exec -it myk8s-control-plane istioctl ztunnel-config connections --node myk8s-worker
docker exec -it myk8s-control-plane istioctl ztunnel-config connections --node myk8s-worker --raw
docker exec -it myk8s-control-plane istioctl ztunnel-config connections --node myk8s-worker -o json
docker exec -it myk8s-control-plane istioctl ztunnel-config policy
NAMESPACE POLICY NAME ACTION SCOPE
docker exec -it myk8s-control-plane istioctl ztunnel-config log
ztunnel-25hpt.istio-system:
current log level is hickory_server::server::server_future=off,info
...

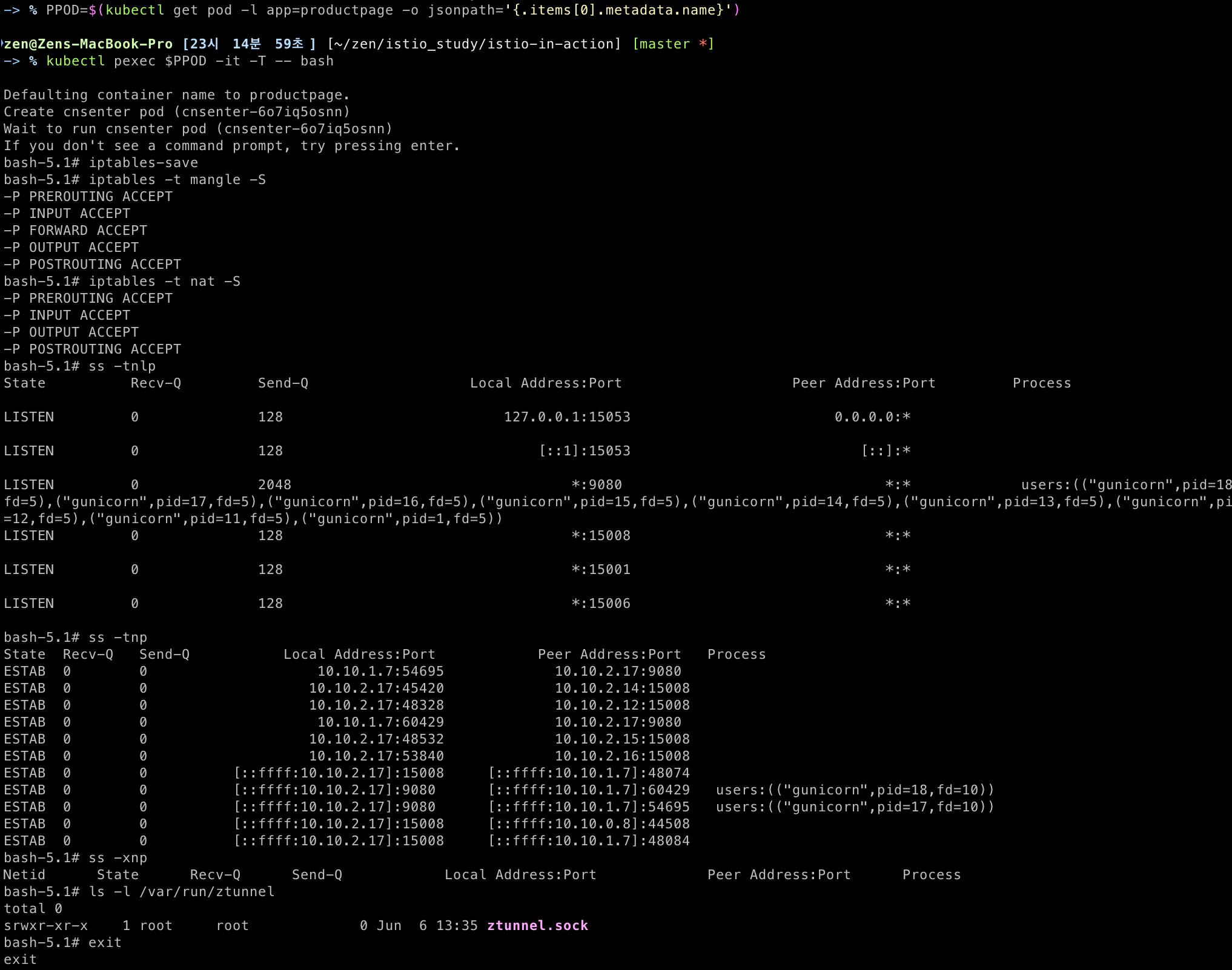

productpage 확인
PPOD=$(kubectl get pod -l app=productpage -o jsonpath='{.items[0].metadata.name}')
kubectl pexec $PPOD -it -T -- bash
-------------------------------------------------------
iptables-save
...
# DNS 트래픽에 대해 연결 추적을 설정, 이후 마크 기반으로 리디렉션 여부를 제어
iptables -t raw -S
...
-A PREROUTING -j ISTIO_PRERT
-A OUTPUT -j ISTIO_OUTPUT
-A ISTIO_OUTPUT -p udp -m mark --mark 0x539/0xfff -m udp --dport 53 -j CT --zone 1
-A ISTIO_PRERT -p udp -m mark ! --mark 0x539/0xfff -m udp --sport 53 -j CT --zone 1
# 특정 마크가 붙은 트래픽을 식별해서 추후 NAT에서 건너뛰게 함
iptables -t mangle -S
...
## 들어오는 패킷을 ISTIO_PRERT 체인으로 전달
-A PREROUTING -j ISTIO_PRERT
## 로컬 생성 트래픽도 마찬가지로 처리
-A OUTPUT -j ISTIO_OUTPUT
## 연결 추적에 저장된 마크를 복원
-A ISTIO_OUTPUT -m connmark --mark 0x111/0xfff -j CONNMARK --restore-mark --nfmask 0xffffffff --ctmask 0xffffffff
## 마크가 특정 값일 경우 새로운 마크로 설정
-A ISTIO_PRERT -m mark --mark 0x539/0xfff -j CONNMARK --set-xmark 0x111/0xfff
# 트래픽 리디렉션 실행
iptables -t nat -S
...
## 특정 IP 예외 처리 (프록시 자체나 메타데이터 주소 등)
-A ISTIO_OUTPUT -d 169.254.7.127/32 -p tcp -m tcp -j ACCEPT
## DNS 요청(udp/53) 을 15053 포트로 리디렉션
-A ISTIO_OUTPUT ! -o lo -p udp -m mark ! --mark 0x539/0xfff -m udp --dport 53 -j REDIRECT --to-ports 15053
## TCP 기반 DNS 요청 도 15053으로 리디렉션
-A ISTIO_OUTPUT ! -d 127.0.0.1/32 -p tcp -m tcp --dport 53 -m mark ! --mark 0x539/0xfff -j REDIRECT --to-ports 15053
## 특정 마크가 붙은 트래픽은 리디렉션에서 제외
-A ISTIO_OUTPUT -p tcp -m mark --mark 0x111/0xfff -j ACCEPT
## 루프백 인터페이스로 향하는 트래픽은 건너뜀
-A ISTIO_OUTPUT ! -d 127.0.0.1/32 -o lo -j ACCEPT
## 나머지 TCP 트래픽은 15001 로 리디렉션
-A ISTIO_OUTPUT ! -d 127.0.0.1/32 -p tcp -m mark ! --mark 0x539/0xfff -j REDIRECT --to-ports 15001
## 특정 메타데이터 IP에서 온 트래픽은 리디렉션 예외
-A ISTIO_PRERT -s 169.254.7.127/32 -p tcp -m tcp -j ACCEPT
## 들어오는 외부 TCP 트래픽을 inbound 포트(15006) 로 리디렉션
-A ISTIO_PRERT ! -d 127.0.0.1/32 -p tcp -m tcp ! --dport 15008 -m mark ! --mark 0x539/0xfff -j REDIRECT --to-ports 15006
# 요약
## DNS 트래픽 → 15053 포트로 리디렉션 (Envoy가 DNS를 프록시)
## TCP 트래픽 (출발지/도착지에 따라) → 15001 또는 15006 포트로 리디렉션
## 특정 마크 (0x539, 0x111)나 주소는 리디렉션 제외
## conntrack 및 mark 시스템으로 트래픽 상태 관리 및 리디렉션 조건 제어
# 15001,15006,15008 확인
ss -tnp
ss -tnlp
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
LISTEN 0 128 127.0.0.1:15053 0.0.0.0:*
LISTEN 0 128 [::1]:15053 [::]:*
LISTEN 0 128 *:15001 *:*
LISTEN 0 128 *:15006 *:*
LISTEN 0 128 *:15008 *:*
LISTEN 0 2048 *:9080 *:* users:(("gunicorn",pid=18,fd=5),("gunicorn",pid=17,fd=5),("gunicorn",pid=16,fd=5),("gunicorn",pid=15,fd=5),("gunicorn",pid=14,fd=5),("gunicorn",pid=13,fd=5),("gunicorn",pid=12,fd=5),("gunicorn",pid=11,fd=5),("gunicorn",pid=1,fd=5))

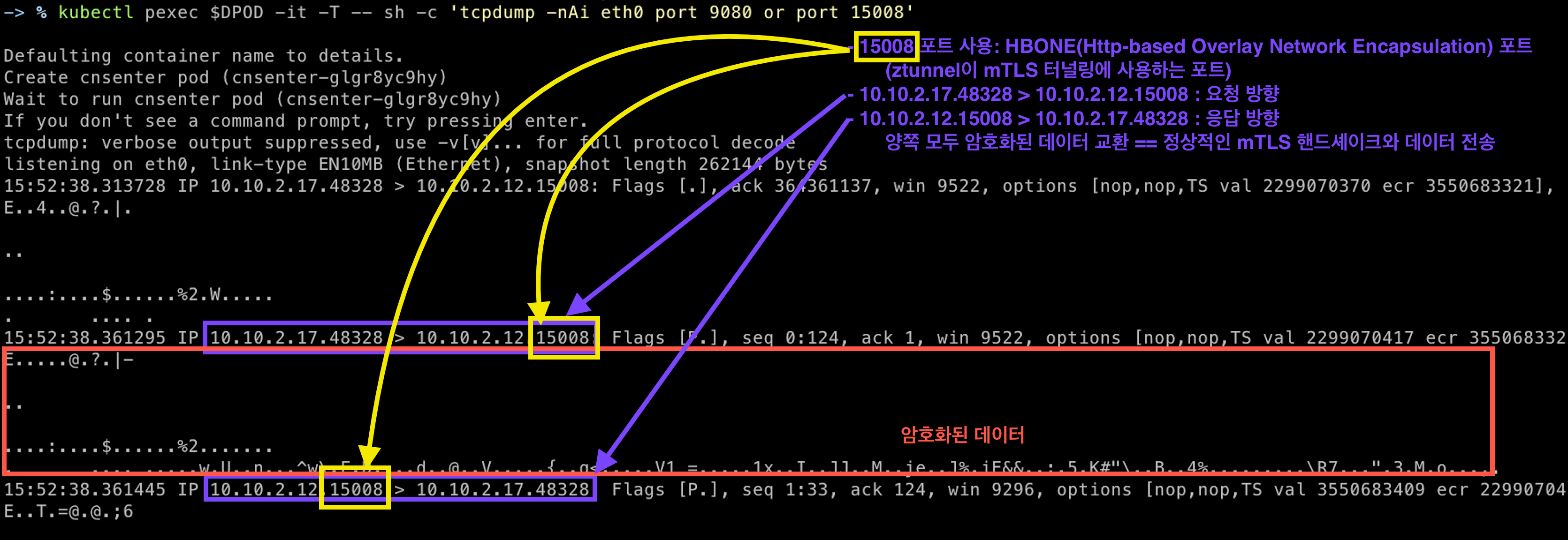

# 암호화 확인
tcpdump -i eth0 -A -s 0 -nn 'tcp port 15008'
apk update && apk add ngrep
ngrep -tW byline -d eth0 '' 'tcp port 15008'
#
ngrep -tW byline -d eth0 '' 'tcp port 15001'
ngrep -tW byline -d eth0 '' 'tcp port 15006'
#
ls -l /var/run/ztunnel
exit
-------------------------------------------------------
Verify mTLS is enabled
workload의 ztunnel config를 사용하여 mTLS 검증
docker exec -it myk8s-control-plane istioctl ztunnel-config workload

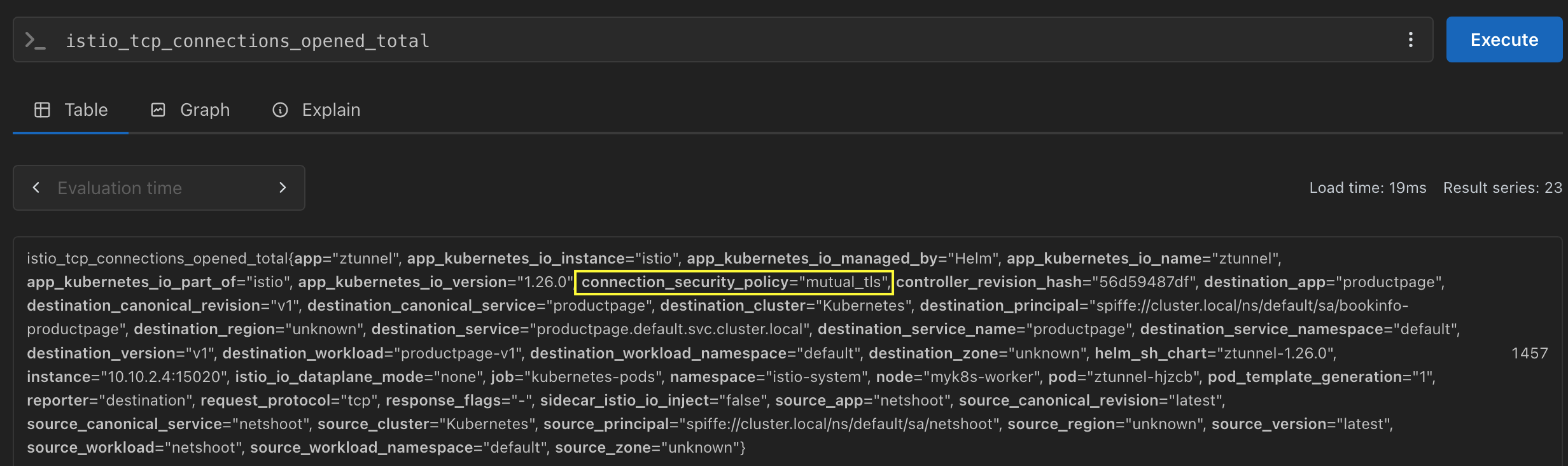

metrics에서 mTLS 검증
istio_tcp_connections_opened_total
logs에서 mTLS 검증
- 소스 또는 대상 ztunnel 로그를 피어 ID와 함께 확인
- SPIFFE ID가 있다는 것은 mTLS가 수행되었음을 의미
kubectl -n istio-system logs -l app=ztunnel | grep -E "inbound|outbound"
Kiali에서 검증
tcpdump로 검증
DPOD=$(kubectl get pods -l app=details -o jsonpath="{.items[0].metadata.name}")
kubectl pexec $DPOD -it -T -- sh -c 'tcpdump -nAi eth0 port 9080 or port 15008'
Secure Application Access: L4 Authorization Policy
두 계층(L4/L7)의 보안 정책
1. L4 정책 (ztunnel)
- 모든 ambient 워크로드에 자동 적용
- IP/포트 기반 접근 제어
- Kubernetes Network Policy와 함께 사용 가능 (심층 방어)
2. L7 정책 (Waypoint)
- 선택적 배포 - 필요한 워크로드만
- HTTP 메서드, 경로, 헤더 기반 고급 제어
- 트래픽 라우팅 기능 포함
핵심: 기본 L4 보안 + 필요시 선택적 L7 고급 기능으로 유연한 보안 모델 제공
# netshoot 파드만 ambient mode 다시 참여
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
kubectl label pod netshoot istio.io/dataplane-mode=ambient --overwrite
docker exec -it myk8s-control-plane istioctl ztunnel-config workload
# L4 Authorization Policy 신규 생성
# Explicitly allow the netshoot and gateway service accounts to call the productpage service:
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
name: productpage-viewer
namespace: default
spec:
selector:
matchLabels:
app: productpage
action: ALLOW
rules:
- from:
- source:
principals:
- cluster.local/ns/default/sa/netshoot
EOF
# L4 Authorization Policy 생성 확인
kubectl get authorizationpolicy
# ztunnel 파드 로그 모니터링
kubectl logs ds/ztunnel -n istio-system -f | grep -E RBAC

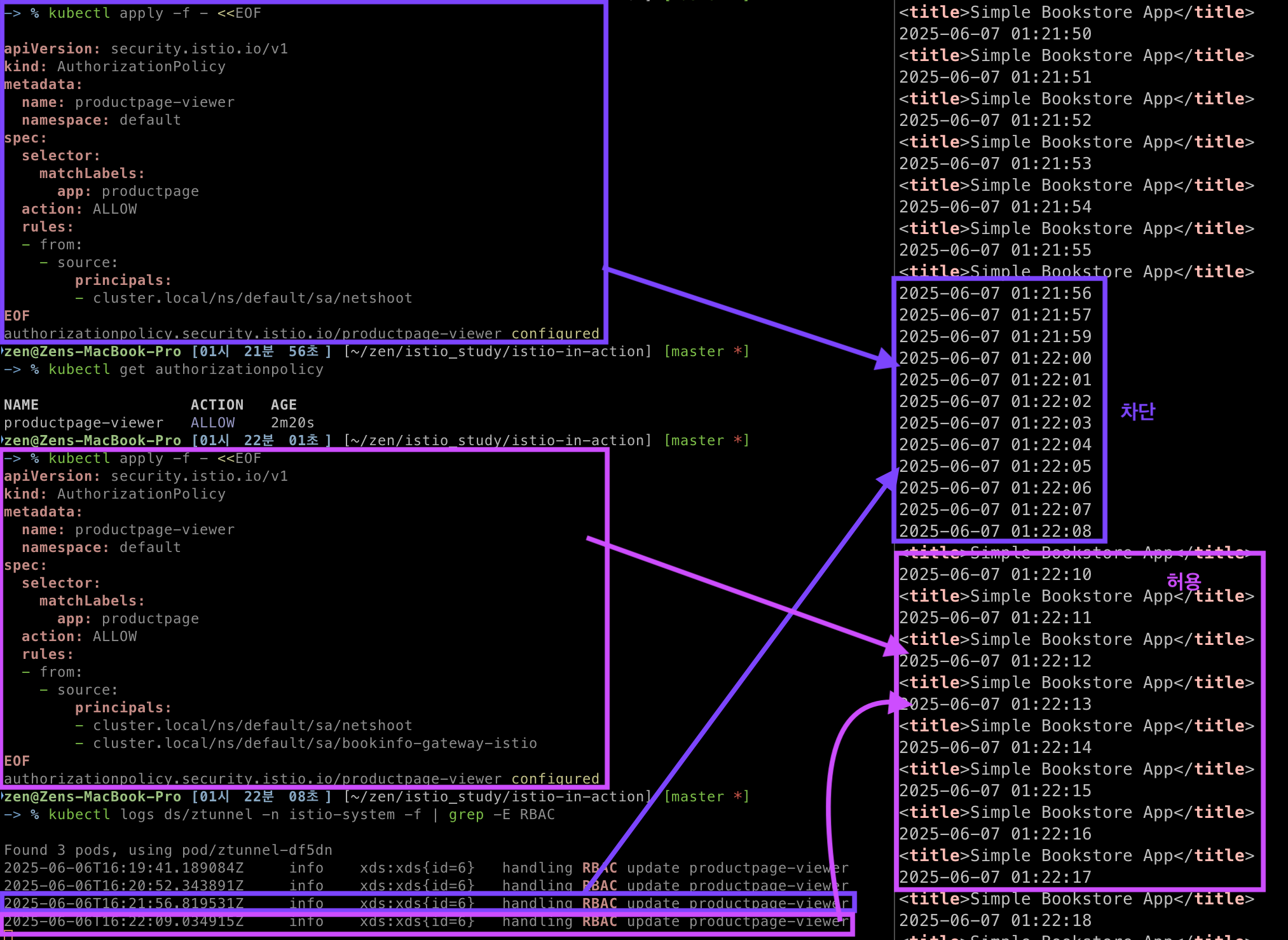

# L4 Authorization Policy 동작 확인
## 차단 확인!
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
## 허용 확인!
kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title
while true; do kubectl exec -it netshoot -- curl -sS productpage:9080/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
# L4 Authorization Policy 업데이트
kubectl apply -f - <<EOF
apiVersion: security.istio.io/v1
kind: AuthorizationPolicy
metadata:
name: productpage-viewer
namespace: default
spec:
selector:
matchLabels:
app: productpage
action: ALLOW
rules:
- from:
- source:
principals:
- cluster.local/ns/default/sa/netshoot
- cluster.local/ns/default/sa/bookinfo-gateway-istio
EOF
kubectl logs ds/ztunnel -n istio-system -f | grep -E RBAC
# 허용 확인!
GWLB=$(kubectl get svc bookinfo-gateway-istio -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
while true; do docker exec -it mypc curl $GWLB/productpage | grep -i title ; date "+%Y-%m-%d %H:%M:%S"; sleep 1; done
- 허용된 정책 속성
- 정책이 L4 전용인지 여부를 결정
| Type | Attribute | Positive match | Negative match |
|---|---|---|---|
| Source | Peer identity | principals |
notPrincipals |
| Source | Namespace | namespaces |
notNamespaces |
| Source | IP block | ipBlocks |
notIpBlocks |
| Operation | Destination port | ports |
notPorts |
| Condition | Source IP | source.ip |
n/a |
| Condition | Source namespace | source.namespace |
n/a |
| Condition | Source identity | source.principal |
n/a |
| Condition | Remote IP | destination.ip |
n/a |
| Condition | Remote port | destination.port |
n/a |
Configure waypoint proxies
- Envoy 기반 프록시를 선택적으로 배포
- 정의된 워크로드 집합에 L7 처리 추가
- 애플리케이션과 독립적으로 설치/업그레이드/확장
- 애플리케이션 소유자는 프록시 존재를 인식하지 않음
- 사이드카 대비 필요한 프록시 수 대폭 감소
- 보안 경계가 비슷한 애플리케이션 간 공유 가능
- 특정 워크로드의 모든 인스턴스 또는 네임스페이스의 모든 워크로드 대상
- 목적지 waypoint에서 정책 시행 (사이드카와 차이점)
- 리소스(네임스페이스/서비스/포드)로 가는 관문 역할
- 해당 리소스로 들어오는 모든 트래픽이 waypoint 통과 강제
- No mesh → 보안 L4 오버레이 → 전체 L7 처리로 원활한 전환
- Istio의 점진적 채택 가능
- ztunnel vs Waypoint
- ztunnel: L4에서만 트래픽 처리, 공유 구성 요소로 안전 작동
- Waypoint: ztunnel을 통해 트래픽 전달받아 L7 처리
Waypoint 필요한 경우
- Traffic Management
- HTTP routing & load balancing
- Circuit breaking
- Rate limiting
- Fault injection
- Retries
- Timeouts
- Security
- L7 기반 풍부한 인가 정책
- 요청 타입 또는 HTTP 헤더 기반 제어
- Observability
- HTTP metrics
- Access logging
- Tracing
# istioctl can generate a Kubernetes Gateway resource for a waypoint proxy.
# For example, to generate a waypoint proxy named waypoint for the default namespace that can process traffic for services in the namespace:
kubectl describe pod bookinfo-gateway-istio-6cbd9bcd49-rvkss | grep 'Service Account'
Service Account: bookinfo-gateway-istio
# Generate a waypoint configuration as YAML
docker exec -it myk8s-control-plane istioctl waypoint generate -h
# --for string Specify the traffic type [all none service workload] for the waypoint
istioctl waypoint generate --for service -n default
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
labels:
istio.io/waypoint-for: service
name: waypoint
namespace: default
spec:
gatewayClassName: istio-waypoint
listeners:
- name: mesh
port: 15008
protocol: HBONE
#
docker exec -it myk8s-control-plane istioctl waypoint apply -n default
✅ waypoint default/waypoint applied
kubectl get gateway
kubectl get gateway waypoint -o yaml
...
#
kubectl get pod -l service.istio.io/canonical-name=waypoint -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
waypoint-66b59898-lx4tc 1/1 Running 0 14s 10.10.2.24 myk8s-worker <none> <none>
#
docker exec -it myk8s-control-plane istioctl waypoint list
NAME REVISION PROGRAMMED
waypoint default True
docker exec -it myk8s-control-plane istioctl waypoint status
NAMESPACE NAME STATUS TYPE REASON MESSAGE
default waypoint True Programmed Programmed Resource programmed, assigned to service(s) waypoint.default.svc.cluster.local:15008
docker exec -it myk8s-control-plane istioctl proxy-status
NAME CLUSTER CDS LDS EDS RDS ECDS ISTIOD VERSION
bookinfo-gateway-istio-6cbd9bcd49-rvkss.default Kubernetes SYNCED (18s) SYNCED (18s) SYNCED (17s) SYNCED (18s) IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
waypoint-66b59898-lx4tc.default Kubernetes SYNCED (17s) SYNCED (17s) IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
ztunnel-df5dn.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
ztunnel-hjzcb.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
ztunnel-nn6z9.istio-system Kubernetes IGNORED IGNORED IGNORED IGNORED IGNORED istiod-86b6b7ff7-q8gr9 1.26.0
docker exec -it myk8s-control-plane istioctl proxy-config secret deploy/waypoint
RESOURCE NAME TYPE STATUS VALID CERT SERIAL NUMBER NOT AFTER NOT BEFORE
default Cert Chain ACTIVE true aec0be95d5bbccfe102f63fcef4e3412 2025-06-07T16:30:42Z 2025-06-06T16:28:42Z
ROOTCA CA ACTIVE true f73948790621512973e90ca2a2b7e673 2035-06-04T13:34:53Z 2025-06-06T13:34:53Z
#
kubectl pexec waypoint-66b59898-lx4tc -it -T -- bash
----------------------------------------------
ip -c a
curl -s http://localhost:15020/stats/prometheus
ss -tnlp
State Recv-Q Send-Q Local Address:Port Peer Address:Port Process
LISTEN 0 4096 127.0.0.1:15000 0.0.0.0:* users:(("envoy",pid=17,fd=18))
LISTEN 0 4096 0.0.0.0:15090 0.0.0.0:* users:(("envoy",pid=17,fd=21))
LISTEN 0 4096 0.0.0.0:15090 0.0.0.0:* users:(("envoy",pid=17,fd=20))
LISTEN 0 4096 0.0.0.0:15021 0.0.0.0:* users:(("envoy",pid=17,fd=23))
LISTEN 0 4096 0.0.0.0:15021 0.0.0.0:* users:(("envoy",pid=17,fd=22))
LISTEN 0 4096 0.0.0.0:15008 0.0.0.0:* users:(("envoy",pid=17,fd=35))
LISTEN 0 4096 0.0.0.0:15008 0.0.0.0:* users:(("envoy",pid=17,fd=34))
LISTEN 0 4096 *:15020 *:* users:(("pilot-agent",pid=1,fd=11))
ss -tnp
ss -xnlp
ss -xnp
exit
----------------------------------------------
Kmesh
- ref
- https://github.com/kmesh-net/kmesh
- https://jimmysong.io/en/blog/introducing-kmesh-kernel-native-service-mesh/
- eBPF + 프로그래머블 커널 기반 고성능 서비스 메시 데이터 플레인
- Sidecarless 아키텍처 - 애플리케이션 코드 변경 없이 투명한 트래픽 관리
-
Zero Intrusion - 애플리케이션 컨테이너에 리소스 비용 없음
- 성능 개선
- Istio Envoy 대비 5배 성능 향상 (서비스 간 통신)
- Kernel-Native 모드: 전통적 사이드카 대비 60% 이상 지연시간 감소
- Dual Engine 모드: Istio Ambient Mesh 대비 30% 지연시간 감소
- 리소스 사용량 70% 감소 - 사이드카 프록시 제거
- 아키텍처 모드
- Kernel-Native 모드
- L4 및 Simple L7(HTTP) 트래픽 거버넌스를 커널로 sink
- 데이터 경로에서 프록시 레이어 통과 없이 투명한 사이드카리스 서비스 메시 구축
- Dual-Engine 모드
- eBPF와 waypoint를 사용하여 L4와 L7 트래픽을 분리 처리
- 점진적 채택 가능: no mesh → 보안 L4 → 전체 L7 처리
- Kernel-Native 모드
- 주요 구성요소
- Kmesh Daemon
- eBPF 프로그램 관리
- 컨트롤 플레인(Istiod)에서 xDS 구성 구독
- 관찰 가능성 및 메트릭 수집 처리
- eBPF Orchestration
- 커널 레벨에서 트래픽 인터셉션 및 관리
- L4 로드 밸런싱, 트래픽 암호화/복호화, 모니터링
- Waypoint Proxy (선택적)
- 고급 L7 트래픽 거버넌스 처리
- 네임스페이스 또는 서비스별 배포
- Kmesh Daemon

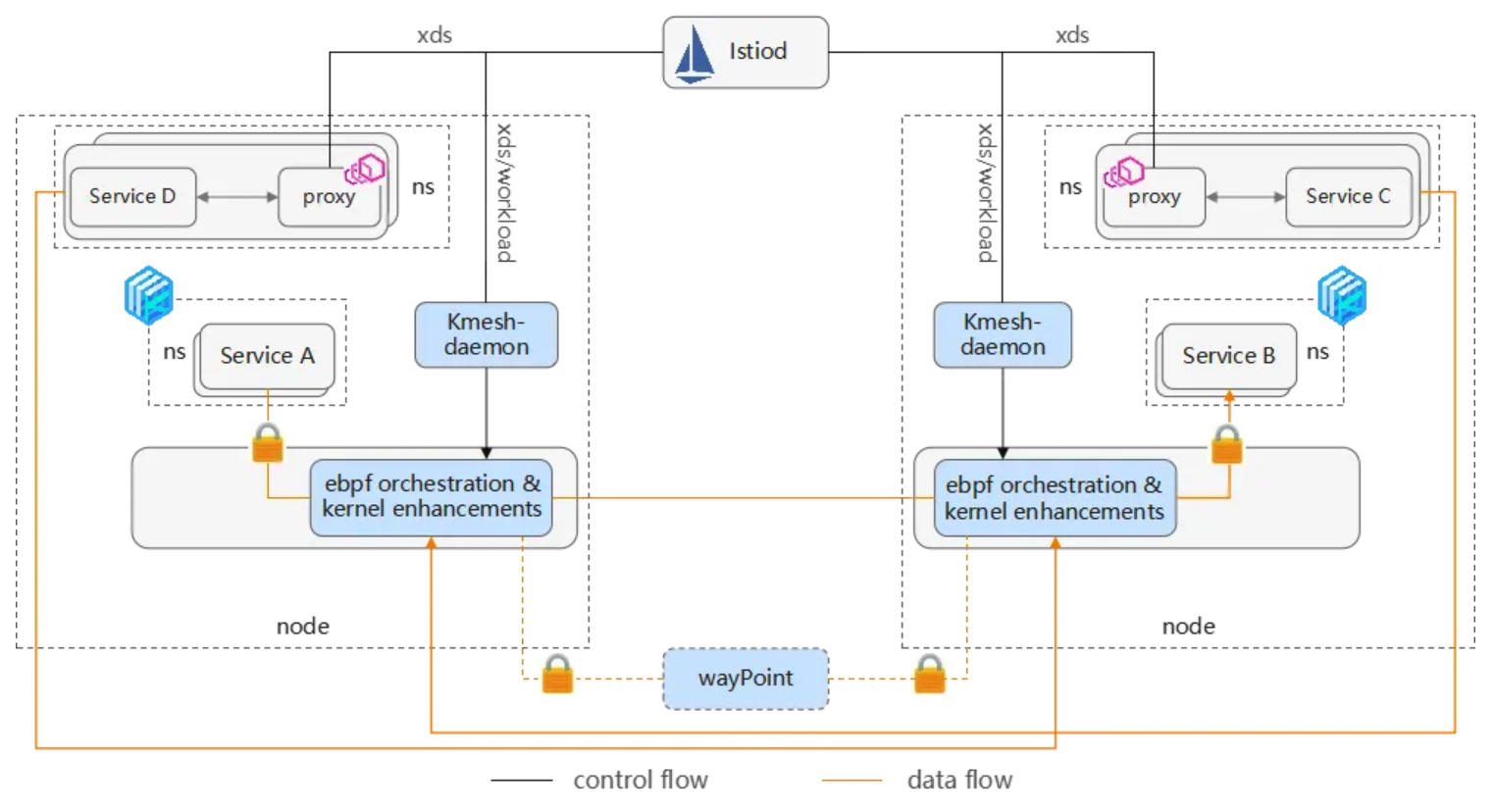

Kmesh Architecture
https://kmesh.net/docs/setup/quick-start/#deploy-the-sample-applications
mac M2 docker(kind)에서 NIC eth0이 xdp 미지원으로 샘플 애플리케이션 배포 실패
I feedback.
Let me know what you think of this article in the comment section below!
Let me know what you think of this article in the comment section below!
comments powered by Disqus
